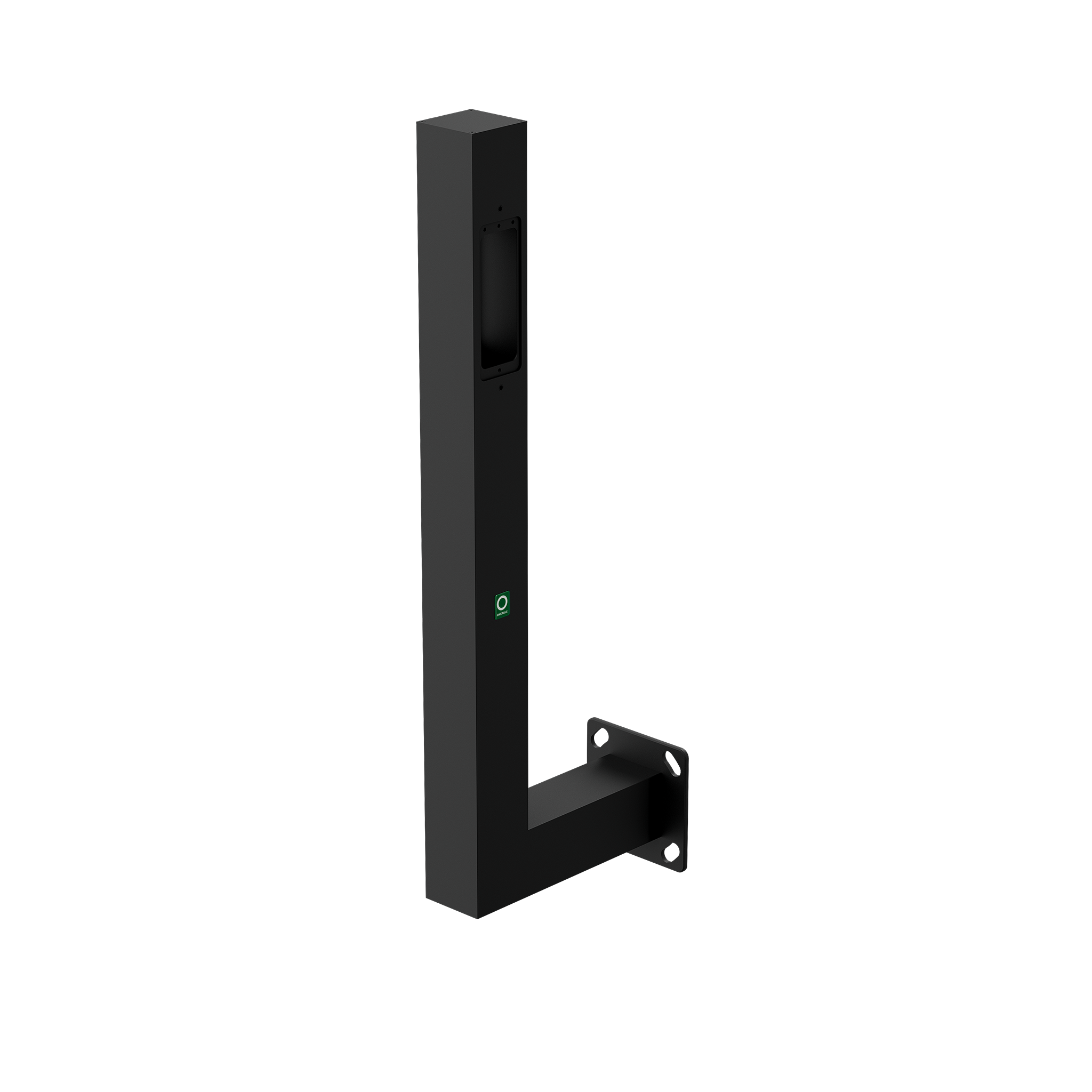

ONEPOLE PRO L-shape 500x1200

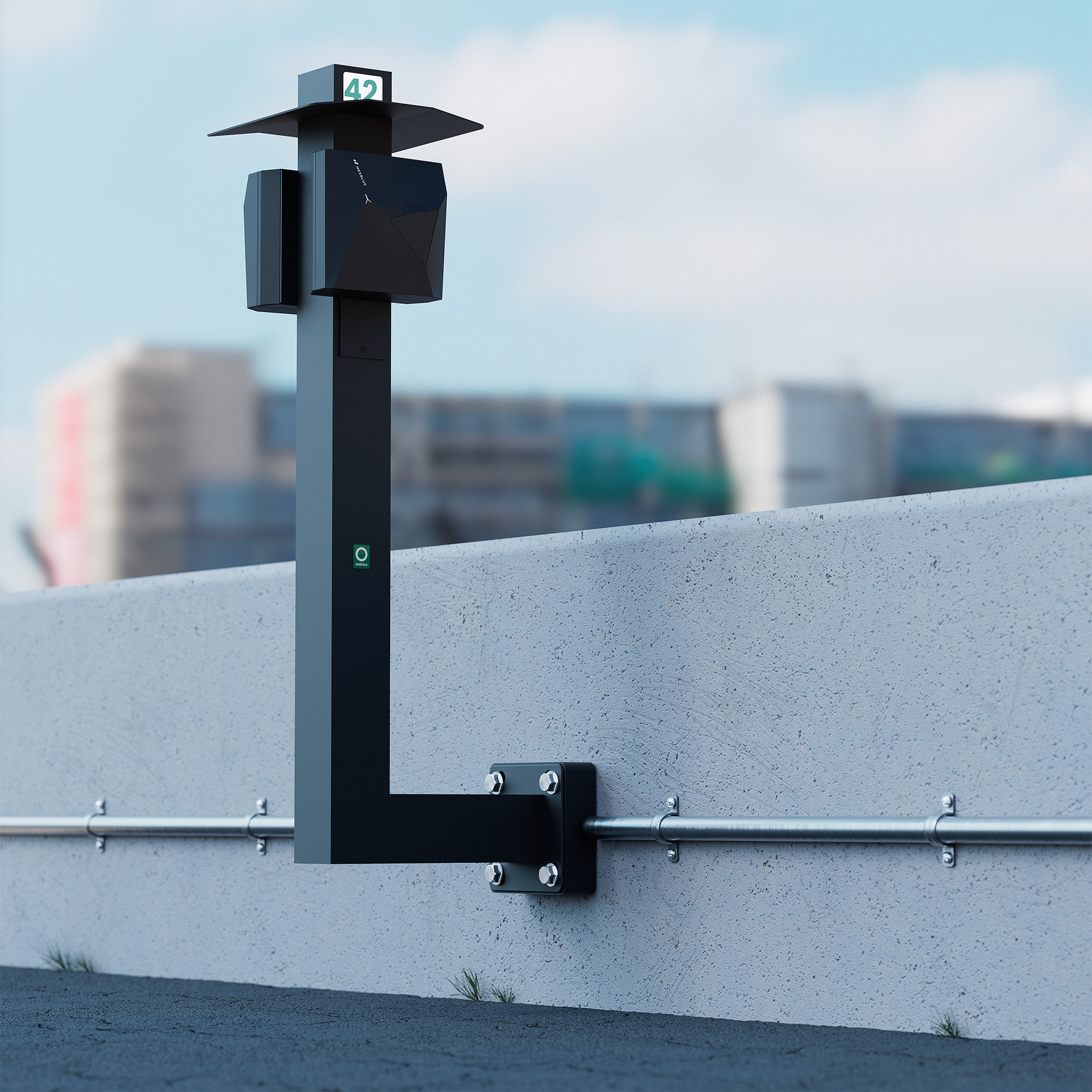

The ONEPOLE base features a custom-designed L-shape with dimensions of 500x1200 mm, offering endless combinations and customization options to suit any project. It can be rotated for ceiling mounting in space-constrained areas, such as parking garages. Crafted from seawater-resistant aluminum and coated with Jotun powdercoat, ONEPOLE provides optimal durability, even in coastal environments. The versatile CC160 footplate design allows for easy installation on both ceilings and floors. For easy cable entry, use the CC160 ceiling/floor adapter art.no Q47JP.
Net Weight7,79kg
Gross Weight8,30kg
Net Dimension1313x227x500mm
Gross Dimensions1350x300x500mm
MaterialPowder-coated searesistant aluminum
Color (standard)RAL9005
Surface TreatmentPowdercoated ISO 12944, Category C4
Accessories4 pcs. M20 Plastic washer DIN125 (for CC160 footplate)
Premounted4 pcs. M5x20 CS DIN7991
2 pcs. M5x10 CS DIN7991
1 pcs. Blind lid
1 pcs. Top lid
