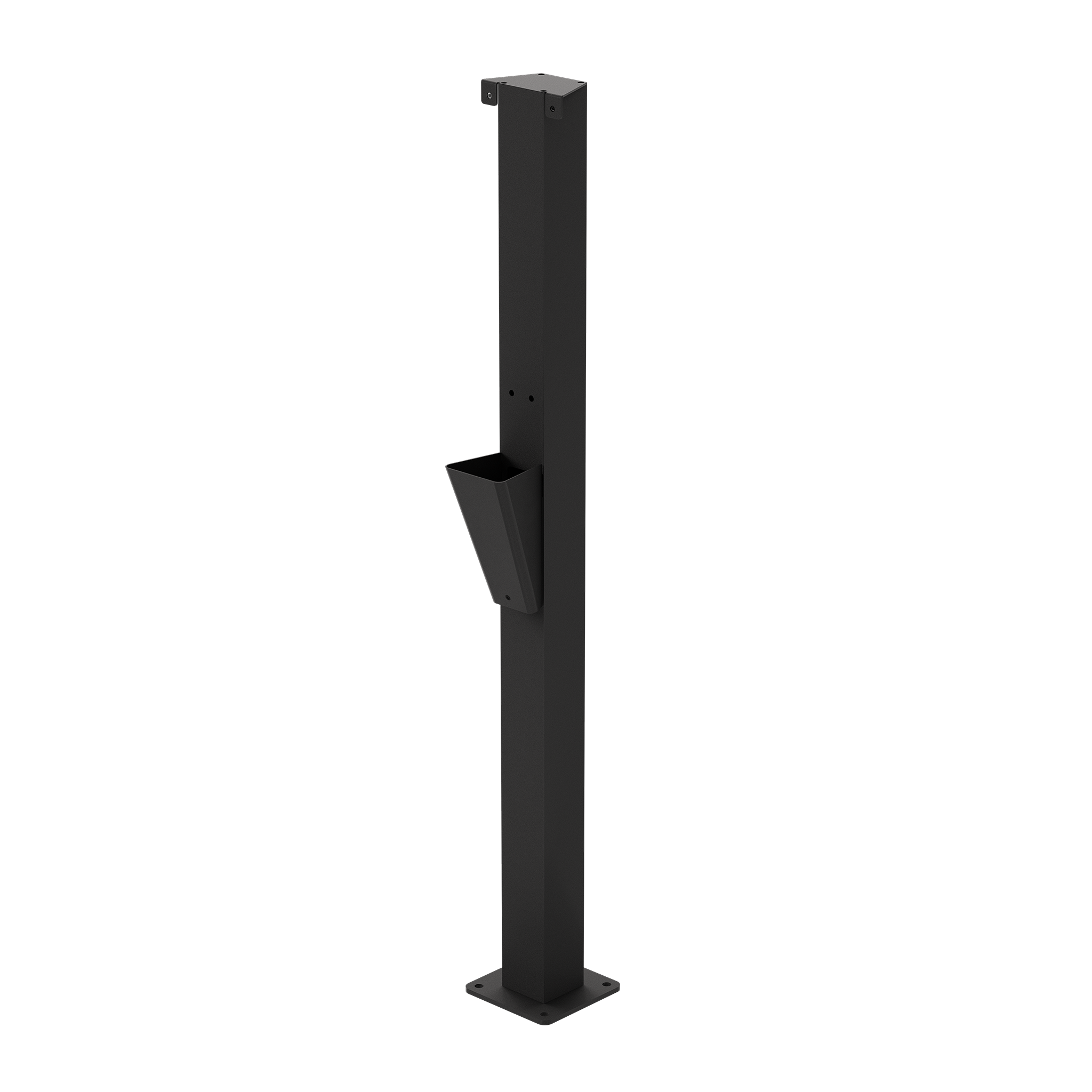

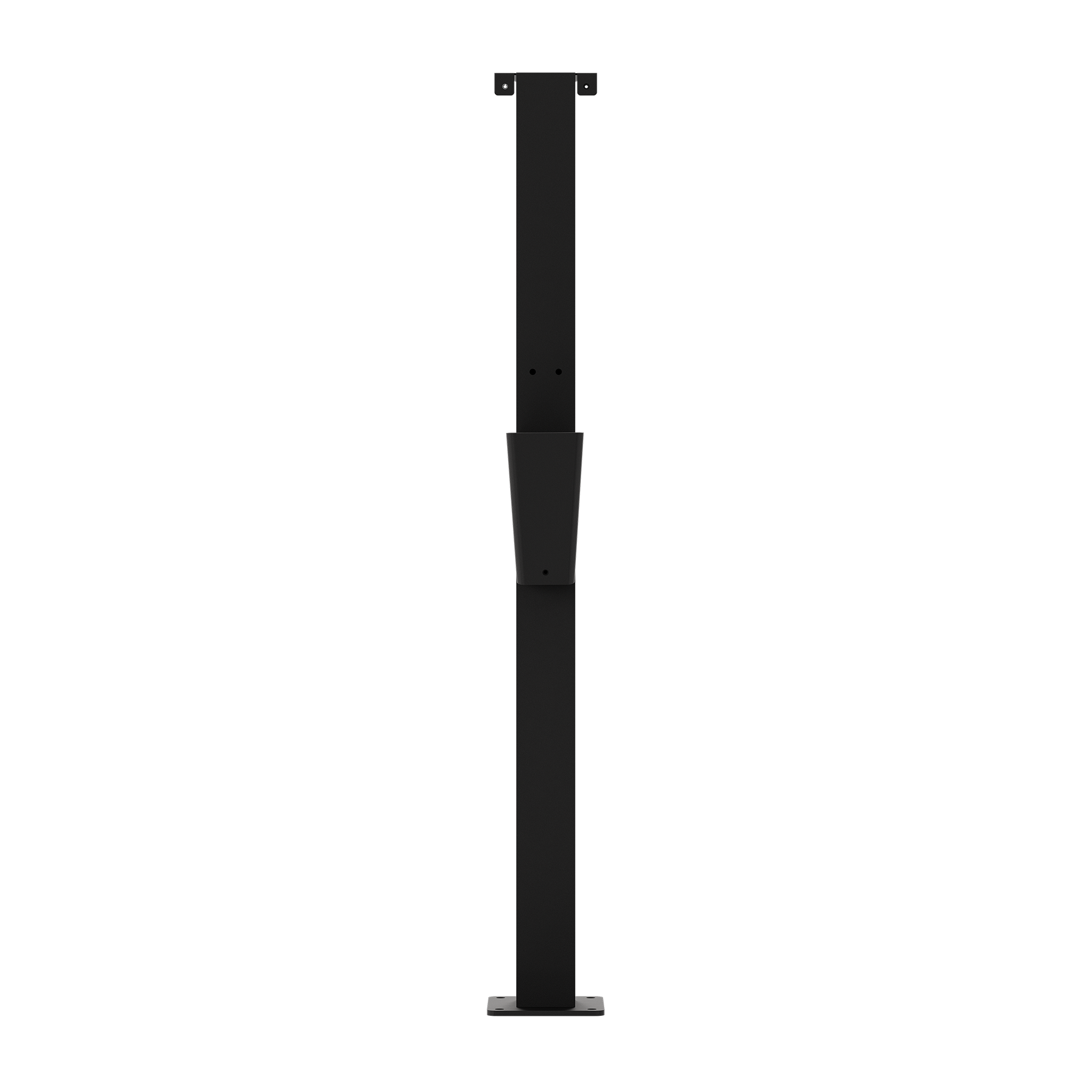

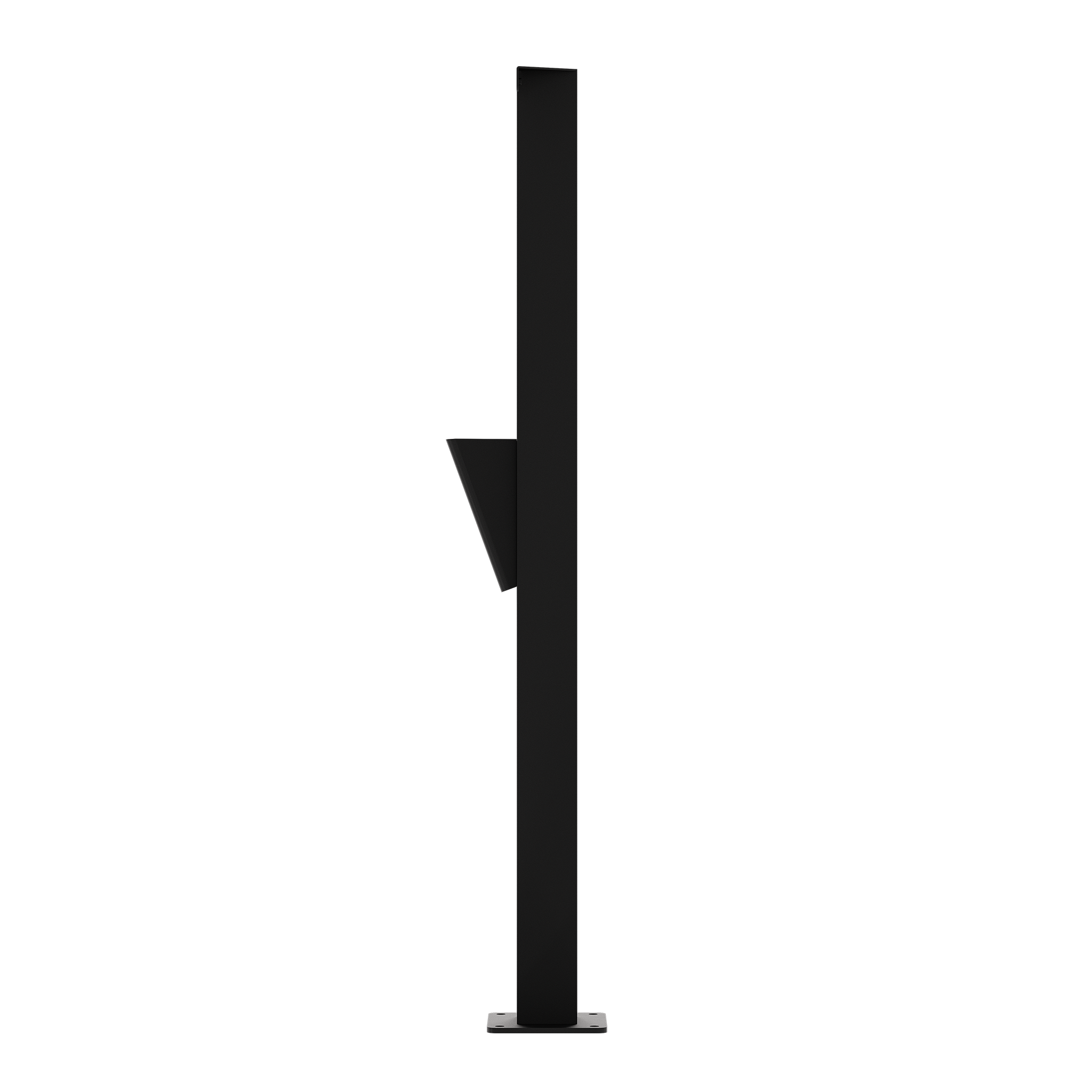

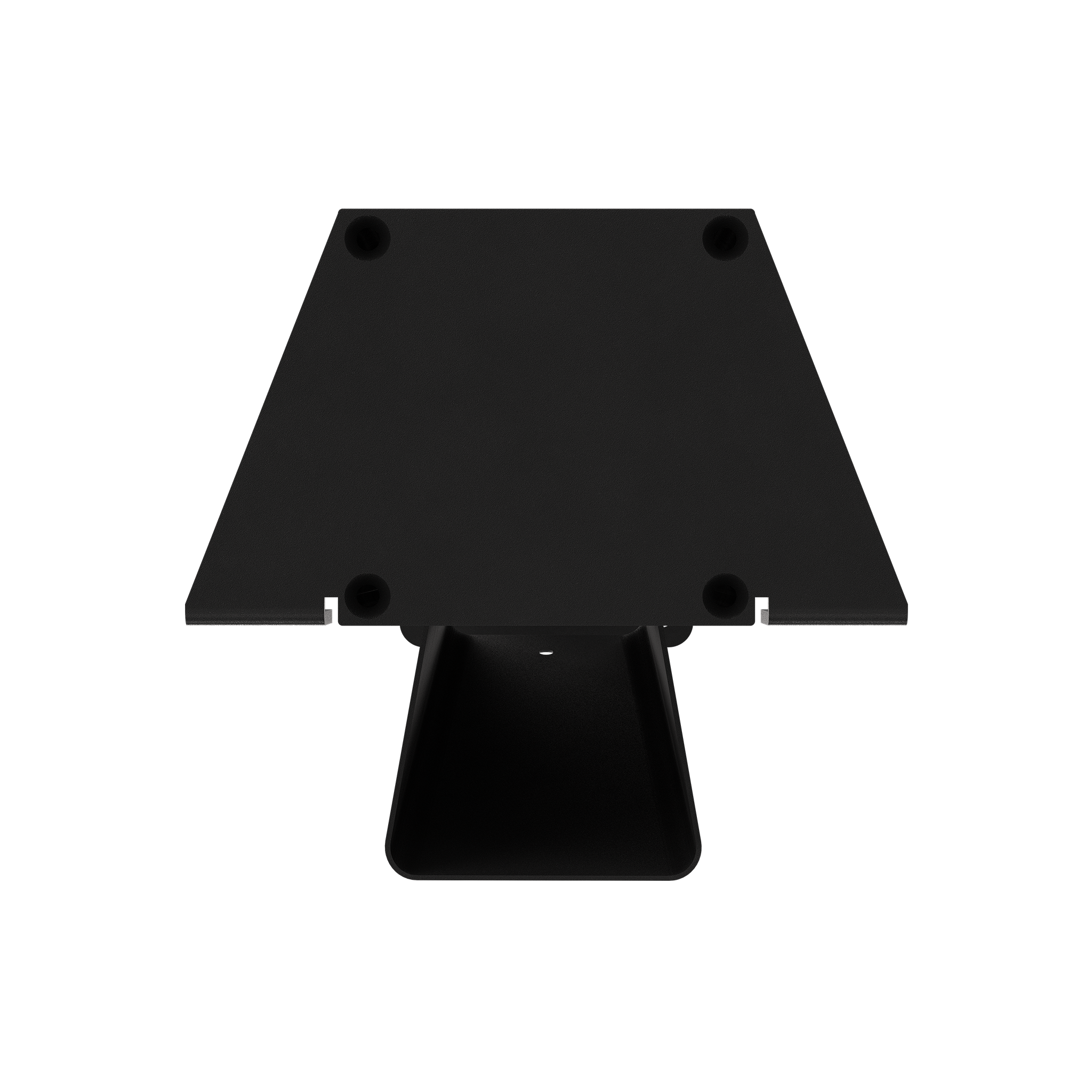

X ALFEN EVE DOUBLE
Net Weight5,32kg
Gross Weight5,65kg
Net Dimension1429x178x178mm
Gross Dimensions1510x190x185mm
MaterialPowder-coated searesistant aluminum
Color (standard)RAL 7043
Surface TreatmentPowdercoated ISO 12944, Category C4
Protection ClassClass I, must be connected to PE
IP RateIP44
Accessories4 pcs. M5x10 tx25 . CS
2 psc. M6x25 Head Cap screw DIN912
2 pcs M6x35 Head Cap screwDIN912
1 pcs. M6x50 DIN7991 CS
1 pcs M6X16 Head Cap screw DIN912
Washer 1pcs standard + 1pcs lock
Premounted4 pcs M8x50 ISO 10642
1 pcs. Q25002 ONEPOLE LITE footplate CC140
1 pcs Top lid Lite
